Overview
What this product does

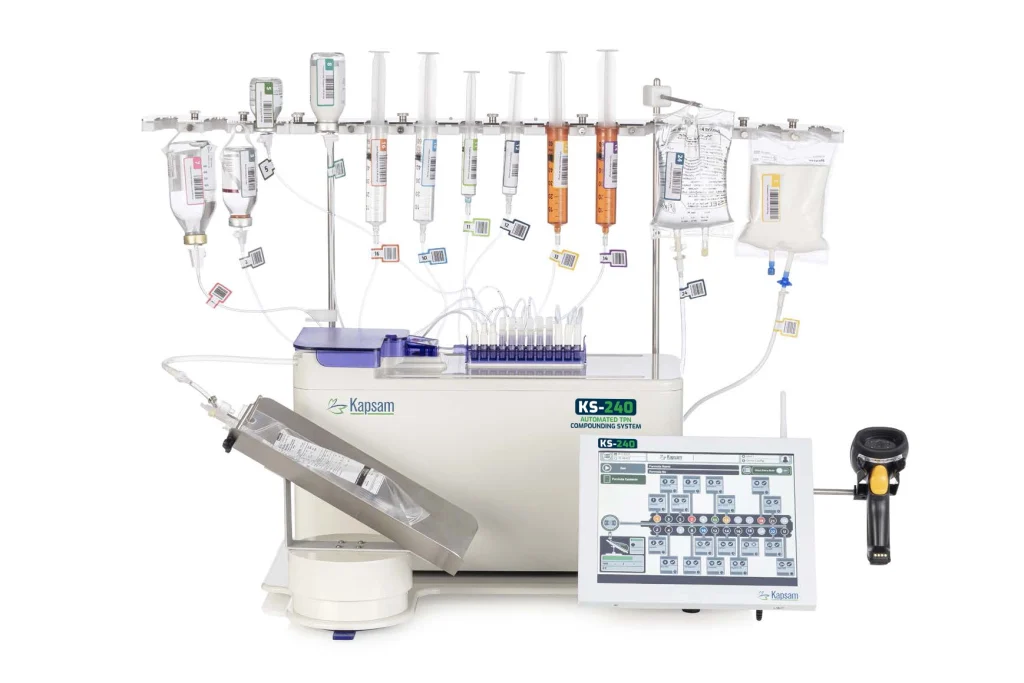

KS-240 automates the preparation of patient-specific parenteral nutrition. The system enhances patient safety, traceability, workflow speed, quality assurance, flexibility, compliance and return on investment, while preventing ordering errors, compounding errors, manual additions, touch-contamination, drug loss, needle-based injuries and UV light effects.
Benefits
Designed around the workflow
Patient safety
Automated preparation removes manual additions and touch-contamination from the workflow.
Traceability
Each preparation is recorded through the device workflow.
Quality assurance
Gravimetric control verifies every addition by weight.
Workflow speed
Dispensing runs at up to 1400 mL/min across 24 configured ports.
In action
Designed around the PN workflow.
24-port setup
Configured ingredient access
NutriSoft
Order entry and calculation
Sterile sets
Manifolds, filters and tubing
Software
Workflow software and connectivity
NutriSoft provides TPN order entry and calculation, and is the point at which hospital system integration is assessed.
Consumables
Related sterile components
Technical
Specification and regulatory information
System components
KS-240A Main Compounding Unit
Electromechanical unit with 24-port valve actuators, peristaltic pump mechanism and control system. Includes built-in air bubble and congestion sensors for filling safety.
KS-240-E Display Unit
Embedded industrial-grade PC with touchscreen, running the KS-240 Device Operating Software.
KS-240-T Scale Unit
Gravimetric control unit with integrated load-cell that self-calibrates with the calibration weight, and calculates the error ratio of each final product.
KS-240-KA Calibration Weight
Certified 2 kg weight used for self-calibration of the scale unit.
KS-240-AS Rack Unit
Attaches all source containers: bags, bottles, syringes and vials.
Technical parameters
| Weight | 34.5 kg (fully assembled) |
|---|---|
| Dimensions (w x d x h) | 76.7 x 52.5 x 46.0 cm |
| Minimum dispensing volume | 0.2 mL, in 0.01 mL increments |
| Maximum dispensing speed | 1400 mL/min (23.33 mL/sec) |
| Compound accuracy | ±10% at 0.2 mL, ±5% at 0.4 mL, ±2% at 1 mL, ±1% above 2 mL |
| Total number of ports | 24 |
| Operating temperature | 15 to 30 °C |
| Storage temperature | -34 to 65 °C |
| Power supply | AC 100-240 V, 50/60 Hz, 120 W, single phase |
| Noise level | Below 60 dB |
2014/35/EU low voltage and 2014/30/EU electromagnetic compatibility, in accordance with TS EN 60601-1, TS EN 61010-1 and TS EN 61326-1.
